Are there specific standards or grades for cold drawn steel?

When it comes to construction, manufacturing, and engineering applications, material quality is paramount. One of the widely used materials in these industries is cold drawn steel. Its strength, precision, and smooth finish make it ideal for components requiring tight tolerances and superior mechanical properties. But how do engineers and fabricators ensure that the cold drawn steel they use meets the required performance standards? Are there specific grades or standards to follow? The answer lies in the established material classifications and quality benchmarks that guide its production, selection, and application.

Understanding Cold Drawn Steel

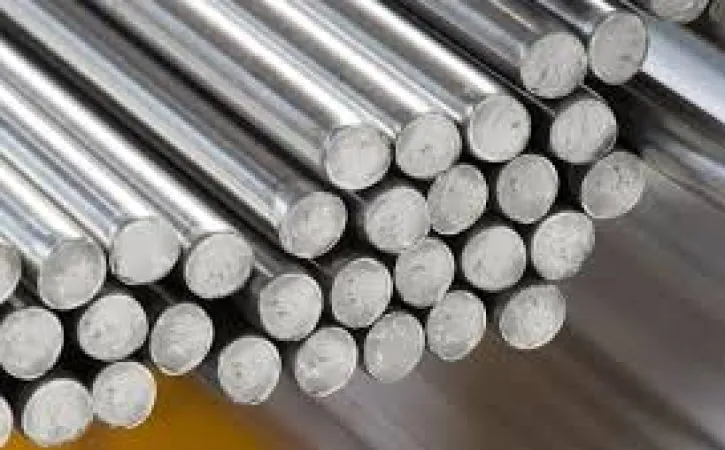

Cold drawn steel is produced through a process in which hot-rolled steel is further drawn through a die at room temperature. This cold working process improves the steel’s dimensional accuracy, surface finish, and mechanical properties. Unlike hot-rolled steel, cold drawn steel is denser, more uniform, and can achieve tighter tolerances, which is why it is preferred for applications such as precision shafts, fasteners, structural components, and hollow sections.

The cold drawing process not only strengthens the steel but also aligns its grain structure, reducing the risk of internal defects. This makes it highly reliable for applications where both mechanical strength and visual appeal are important. However, not all cold drawn steel is the same—its properties vary according to chemical composition, mechanical treatment, and international standards governing its production.

Standards Governing Cold Drawn Steel

Several international and national standards define the specifications for cold drawn steel. These standards ensure consistency in quality, mechanical properties, and chemical composition across different manufacturers. Among the most commonly referenced standards are:

1. ASTM (American Society for Testing and Materials) Standards
   ASTM provides several grades for cold drawn steel, including ASTM A108 and ASTM A513. ASTM A108 specifically covers cold-finished carbon steel bars used in machining, while ASTM A513 relates to cold-finished welded and seamless carbon steel tubular products. These standards specify requirements such as tensile strength, yield strength, elongation, and hardness, which are crucial for both structural and mechanical applications.
2. EN (European Standards)
   In Europe, EN standards define cold drawn steel grades for specific applications. EN 10277, for example, specifies cold drawn steel bars with different grades based on tensile properties and chemical composition. Compliance with these standards ensures that the steel can withstand mechanical stress, pressure, and wear during its service life.
3. JIS (Japanese Industrial Standards)
   Japanese manufacturers often follow JIS G4051 or JIS G3444, which cover cold drawn carbon steel bars and steel tubes, including hollow sections. These standards outline tolerances, mechanical properties, and chemical limits, helping engineers select the right material for precise applications.
4. IS (Indian Standards)
   In India, IS 1570 and IS 1030 provide specifications for cold drawn steel bars and tubes. These standards guide the fabrication of hollow sections used in construction and industrial equipment, ensuring uniform quality across local manufacturing units.

Grades of Cold Drawn Steel

Cold drawn steel is available in multiple grades, each suited to particular applications. The most common classification involves carbon content, which determines hardness, ductility, and tensile strength:

• Low Carbon Steel (≤ 0.25% Carbon): Flexible, easily machinable, and commonly used for components requiring moderate strength.
• Medium Carbon Steel (0.25–0.60% Carbon): Offers a balance of strength and ductility, suitable for shafts, axles, and mechanical parts.
• High Carbon Steel (> 0.60% Carbon): Very hard and strong, often used in applications where wear resistance is critical.

Each grade can be further refined according to mechanical properties. For instance, a cold drawn steel hollow section used in structural frames may require higher yield strength and strict tolerance levels, while decorative applications might prioritize surface finish over tensile strength.

Why Standards and Grades Matter

Choosing the correct grade of cold drawn steel is not just a technical preference—it is a safety and performance requirement. Using a steel grade that fails to meet standards can lead to premature failure, structural weakness, and increased maintenance costs. For example, a hollow section in a load-bearing frame made from low-strength cold drawn steel may deform under stress, compromising the entire structure. Compliance with standards ensures predictable performance, facilitating reliable design and fabrication.

Moreover, following established standards makes procurement easier. Engineers and contractors can specify grades like ASTM A108 or EN 10277-1, knowing that suppliers will provide consistent quality. This consistency reduces the risk of material failure, ensures compatibility with machinery, and allows smooth integration in fabrication processes.

Applications of Standardized Cold Drawn Steel

Standardized cold drawn steel finds use across a variety of industries:

• Construction: Structural frameworks, beams, and hollow sections for buildings and bridges.
• Automotive: Shafts, axles, and fasteners where precise dimensions and high strength are essential.
• Machinery: Components subjected to wear, impact, and high stress.
• Furniture and Decorative Items: Steel tubing and hollow sections that require a smooth finish and consistent appearance.

Conclusion

Yes, there are specific standards and grades for cold drawn steel, and understanding them is critical for any project that demands reliability and precision. From ASTM and EN to JIS and IS standards, each provides guidelines for chemical composition, mechanical properties, and dimensional tolerances. Choosing the right grade ensures that components like hollow sections perform optimally under load, resist wear, and meet safety requirements. By adhering to these standards, engineers, fabricators, and manufacturers can confidently utilize cold drawn steel in a wide range of industrial, structural, and decorative applications.
