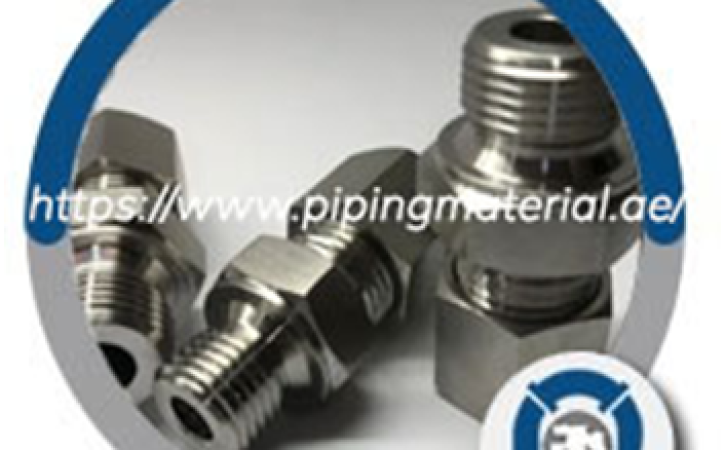

Single Ferrule Fittings

What is the difference between single ferrule and double ferrule?

Tube fittings are generally designed in either single or double ferrule grades. The ferrules play a pivotal role to create a seal and hold the tubing in the correct place. These Single Ferrule Fittings are designed with a singular ferrule that grips the tubing securely. This allows the creation of a leakproof seal between the compression nut and the fitting body. If it simultaneously performs two functions, the seals and locks the equipment in place. They are asymmetrical, and the nut can transfer torque to the ferrules as it is tightened. This allows it to compress over time. They are generally utilized when the number of components can be reduced without affecting the reliability of the seal. This work well for use in soft, plastic, and brass materials. They are well-versed to be better suited for compression fitting applications that help vibrate and pulsate a lot.

A four components compression fitting is the dual ferrule specification. The Double ferrule fittings have two separate ferrules that attach the front and back ends of the ferrule. They are typically utilized in compression fittings, which are manufactured, making use of rigid materials. The symmetrical nature of dual ferrule allows them to tighten the nut and doesn’t cause asymmetrical itself. They come with a front ferrule that allows them to compress into the fitting body that can be easily decoupled the nut from the front ferrule. It can be easily put down and grip softer metal. This helps prevent an uneven transfer of torque and doesn’t require any leakage. They are better suited for use in higher pressure applications.

Single Ferrule Fittings

What is the purpose of ferrule fittings?

A pipe ferrule fitting is a fastener that is manufactured with a combination of different materials. They are primarily used to join or bind pieces of pipe sections together. It is made up of a circular clamp that connects together and helps join fibers, wires, or posts. The fitting is made up of a ring or cap that is connected to an object. This helps protect it against damage, wear, or splitting and is available in variable sizes. They are created in such a manner and have hardening features that provide excellent resistance against leakage in elevated pressures. It is generally designed in sizes of 1/8 to 2 OD and has a working pressure of up to 670 bars.

How do you use a ferrule compression fitting?

Compression ferrule fittings have a compression end that compresses and creates a strong joint. The grade offers the most versatile method to connect metal or hard plastic tubing that can work in extreme temperatures and pressures. They have good compatibility with aggressive fluids and can be utilized in systems varying from refineries to plumbing applications. The modules vary in design from one manufacturer to the other. However, they are made of three basic elements, including a compression nut/screw, a fitting body, and one or more ferrules. The tubing is inserted into the end of the fitting, and the nut is fastened, forcing the ferrule into the fitting’s body. The angled shape of the body radially compresses the end of the unit to the outer diameter of the tubing. This helps create a tight leakproof sealing joint.

Why is buying single ferrule fittings from China so cheap compared to India?

China is known to be one of the top suppliers of single ferrule fittings in the industry. Their manufacturing procedures have influenced its rapid production rates. However, it is important to note that their products are not of the optimum best. They want to create a monopoly in the market by flocking products into the markets at low prices. Further, they don’t follow any quality assurance policies that deter their reliability and performance. So, they don’t offer the best sustainability for long periods. So, cheap is not always the best, as you can see. But if you are looking for a product with reasonable pricing, then you should go for Indian steel. The steel from the subcontinent is of the highest quality. The manufacturers in the country make use of the best technology and procedures to produce the best fittings. They also follow quality assurance policies that give them an edge in the industry. The equipment is available in an array of sizes and can be easily customized as per requirements. Further, they have good transportation channels through three ways that can deliver products to your doorstep within a short period. All this tells you why you have to buy products from India compared to cheap Chinese fittings.
